Wrt Transformer or Generator Coil Resistance Testing Equipment

Wrt Transformer or Generator Coil Resistance Testing Equipment

Overview Package Size 57.00cm * 45.00cm * 33.00cm Package Gross Weight 20.000kg WRT Transformer or Generator Coil Resist
SHARE
Send inquiry

Description

Overview
Basic Info.
Model NO. WRT
Customized Non-Customized
Packing Weight 20kg
Power Supply AC 220V, 50Hz/60Hz
Packing Dimension 57*45*33cm
Data Storage 200 Groups
Trade Terms EXW, Fob, DDU, Cit, etc.
Payment Term 30% as Deposit, The Balance Before Delivery
Shipping Method Suggest to Ship by Air or Express
Delivery Lead Time 7 Days After The Order Is Confirmed
Test Current 20mA, 200mA, 2A, 5A, 10A, 20A
Features High Quality Resistance Testing Equipment
Operation Mode Manual Mode
Display Digital Display
Description Transformer Coil Resistance Testing Equipment
Application Field Electrical Industry, Transformer Manufacturer
Functions Test Coil Resistance of Transformer
Transport Package Resistance Testing Equipment Packed in Veneer Case
Specification 57*45*33cm, 20kg
Trademark Delta
Origin China Mainland
HS Code 9031809090
Production Capacity 1000 Sets Resistance Testing Equipment / Month
Packaging & Delivery
Package Size 57.00cm * 45.00cm * 33.00cm Package Gross Weight 20.000kg
Product Description

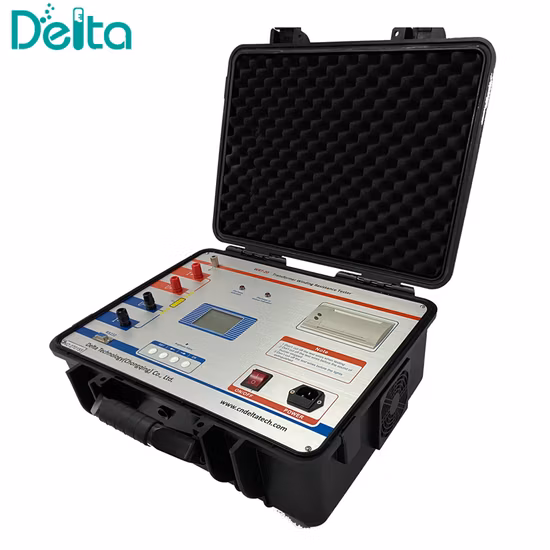

WRT Transformer or Generator Coil Resistance Testing Equipment

Product DescriptionWRT Transformer or Generator Coil Resistance Testing Equipment is a high precision new generation product that can replace DC Wheatstone Bridge and double-arm Bridge.
WRT Transformer or Generator Coil Resistance Testing Equipment adopts the advanced starting power constant current source technology, uses four digit and half LCD display value and three digit and half LCD displays the ambient temperature or test current value, it overcomes the shortcoming that the LED display ambient value reading of other similar product is not convenient to read under the sun, at the same time it has the automatic arc extinguishing function.
WRT Transformer or Generator Coil Resistance Testing Equipment is an ideal equipment for measuring transformer winding and large power output inductor equipment Product Parameters
ItemWRT-2AWRT-5AWRT-10AWRT-20AWRT-40AWRT-100AWRT-20S
Test current2A5A10A20A40A25A,50A, 100ASingle phase: 1A,5A,10A,20A, 40AThree phase: 1A, 5A, 10A, 20A
Measuring range1μΩ~4.5kΩ1μΩ~20kΩ1μΩ~20kΩ1μΩ~10kΩ1μΩ~10kΩ50μΩ-200mΩ(100A)100μΩ-400 mΩ(50A)200μΩ-800 mΩ(25A)Single phase:10mΩ~20Ω(1A)1 mΩ~4Ω(5A)1 mΩ~2Ω(10A)1 mΩ~1Ω(20A)1 mΩ~0.5Ω(40A)Three-phase:10 mΩ~6Ω (1A,each phase)1 mΩ~1Ω (5A,each phase )1 mΩ~0.6Ω (10A,each phase )1 mΩ~0.3Ω (20A,each phase )
Resolution1μΩ
Max. Error0.2%RDG+2D
Voltage output20V
Resolution1μΩ
Power supplyAC220V±10% 50Hz/60Hz
Working environment-10ºC-+40ºC RH≤85%
FeaturesWRT Transformer or Generator Coil Resistance Testing Equipment has the advantages of quick speed measuring, high precision, visual display, strong anti-interference capability, small size, economical power consuming, stable and reliable test data, not affected by personal factor.
It is an ideal device to measure various sensible loaded resistance and low voltage starting contact resistance, line and cable resistance and welded seam interface.
WRT Transformer or Generator Coil Resistance Testing Equipment is a quickest measuring device to measure the DC resistance of current domestic large inductance equipment such as power transformer. Test speed is over one hundred times quicker than the bridge. Packaging & Shipping
  • Packing: The tester is packed in veneer case to protect the tester during shipping.
  • Shipping Method: AC DC Hipot Teter can be shipped by Sea only, because there is much oil in the transformer, other testers can be shipped by Express, Air and Sea.
  • Our Advantages

    1. High Quality Product: Most equipment have been on sale for more than 10 years, they are stable, reliable, with high quality and good reputation. All the products have been tested, run well and adjusted to good condition before delivery.
    2. Good Faith Cooperation: Honesty is our foundation, we don't brag about the company and products, seek truth from facts, and don't make random promises.
    3. Innovative Technology: Based on full experience in designing and manufacturing these equipment, and with users' feedback, we continuously improving our equipment and developing new products.
    4. Awesome Service: Provide professional advice and reasonable offers within 2 hours at working time, and within 12 hours at non-working time. One year warranty for all the products, life time technical consulting, life time provision of spare parts, free software upgrades.

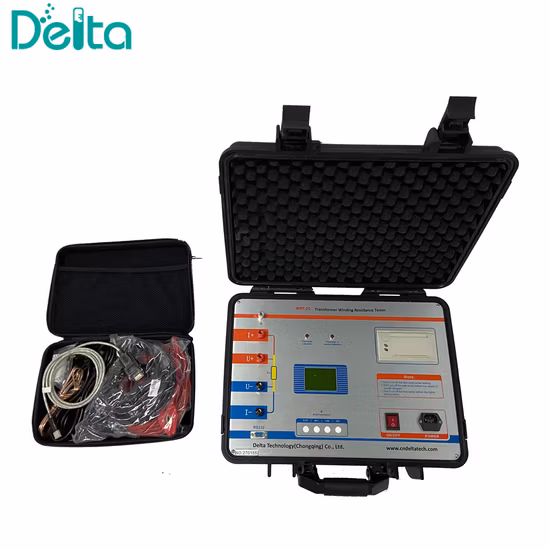

    Wrt Transformer or Generator Coil Resistance Testing Equipment

After Sales Service1. Warranty period for all products is One year;
2. Within warranty period, all quality problems of the instrument shall be repaired by our company free of charge;
3. Beyond warranty period, our company shall be responsible for life-time maintenance, only the cost of the accessories will be charged;
4. User manual will be sent with the tester, some testers have demo for review.
5. If users have question on operation, we supply on-line video training. Users can also come to our factory to get free training.

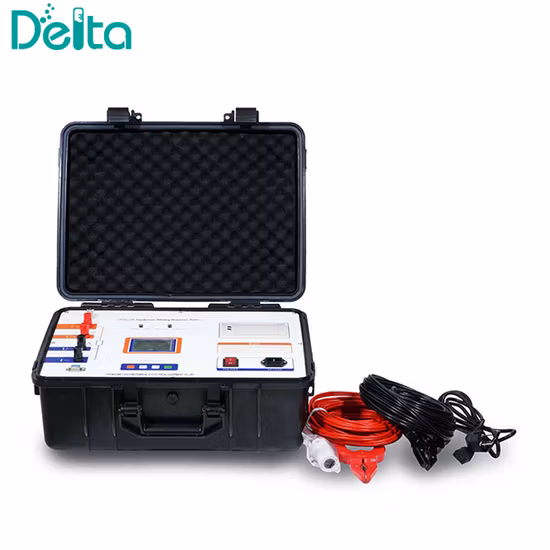

Wrt Transformer or Generator Coil Resistance Testing Equipment

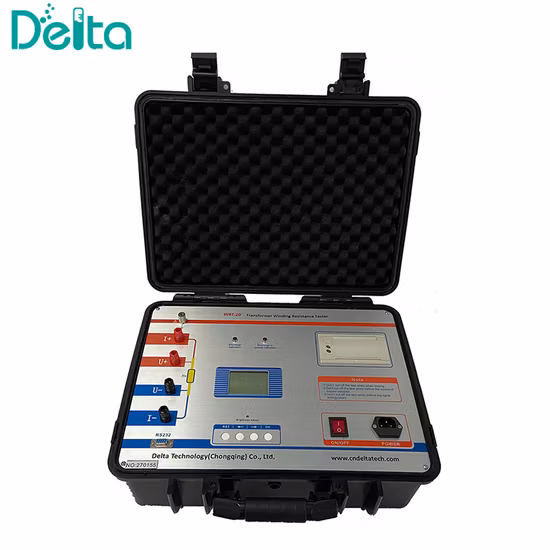

Wrt Transformer or Generator Coil Resistance Testing Equipment

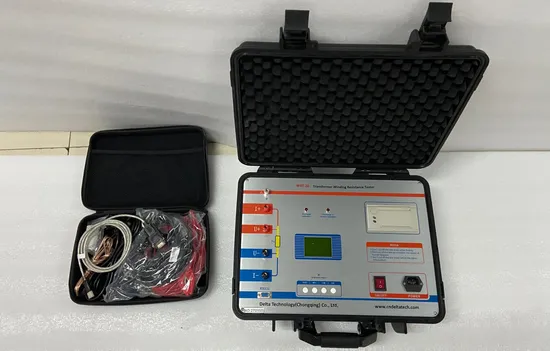

Wrt Transformer or Generator Coil Resistance Testing Equipment
